BZZ series cycloid hydraulic s
當前位置：首頁 >> BZZ series cycloid hydraulic s| 050 series ---Small Displacement Series | ||
|
|
||
|
發布日期：[2015/1/18 14:42:11] 點擊率：[4584] 來源：濟寧力科液壓有限責任公司 |
||

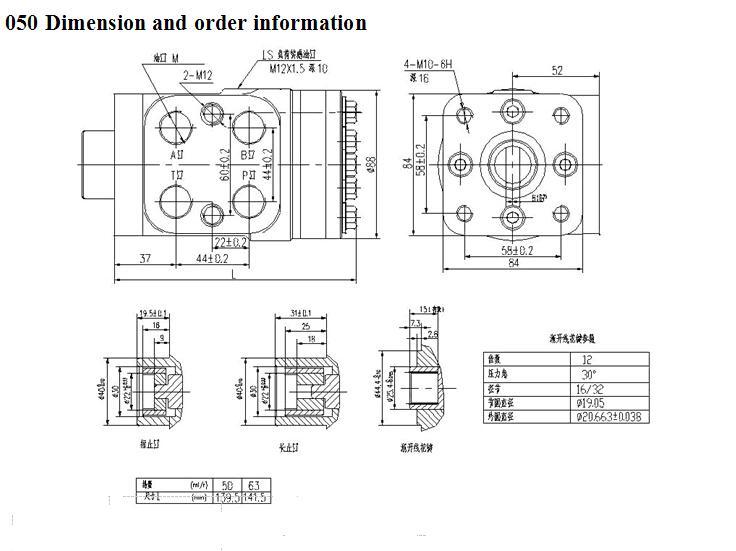

050 series PSU is a small displacement PSU. The displacement includes: 50.63ml/r. It is typical used in mini engineering vehicles, such as small tractor Features The optimum design of spool and sleeve gains better characteristics. Low hydraulic noise Special casting design for low pressure drop Basic system _ open center Main Specification DataMax. system pressure……………16MPa Max. back pressure……………2.1MPa Input torque…………………1.7～2.5Nm Max. system operating temperature……………93°C Recommended oil filtration…………ISO 18/13 |
||
|
|
||
